Operating Table
CE, ISO13485
Medtrue
Mt02010101
Jiangsu China (Mainland)

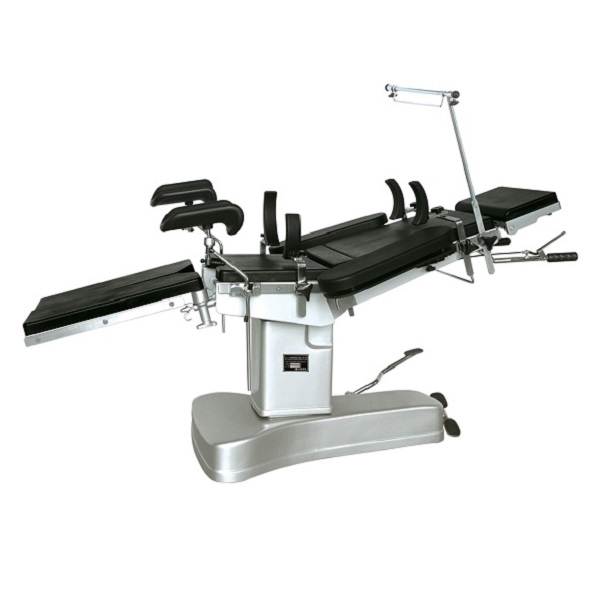

Universal Operating Table
CE/ISO Approved Universal Operating Table (MT02010101)
Introduction:
Universal Operating Table involves hydraulic and pneumatic technologies. It can be easily and conveniently operated,obtaining the desired position only by pressing the handle at the front. The air cylinder to the operating table is imported fom Germany,and the bed surface is a specially made board,which makes it convenient for fluoroscopy and other medical examination.
Features:
1.Various actions are controlled by hydraulic pneumatic system.
2.All actions only need to press and pinch head position to obtain clinical required position.
3.Imported Y type sealing ring is durable.
4.The table surface adopts imported carbon plastic plate which is easily for conducting X-ray examination, equipped with coincidence rail.
5.The base adopts imported carbon cloth which can be easily cleaned and sterilized.
6.The mattress is once foam molded by polyurethane with homogeneous force.
7.Foot treadle brake device which is easily for moving operating table.
Technical Specifications:
| Length: 2000± 50mm |
| Width: 480± 20mm |
| min-max height: (700-950)± 50mm |
| forward≥ 20° backward≥ 15° |
| leftward≥ 15° rightward≥ 15° |
| Back board Folding upward≥ 75° |
| Head board Fold upward≥ 35° Fold downward≥ 40° |
| Leg board Folding downward≥ 90° |
| Waist board elevation ≥ 80mm |
Standard Accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waisthand.
